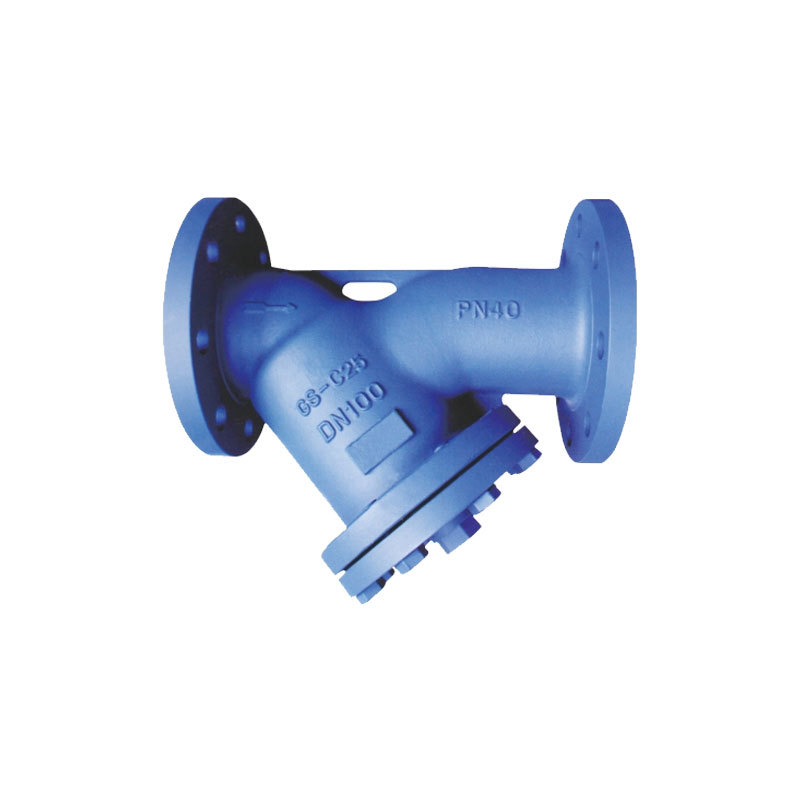

产品描述
| 主要外形和连接尺寸 | 单位：mm | ||||||||||||
| 产品型号 | 公称通径 DN |
L | H | H1 | B | 有效过滤面积 (㎡) |
约重(kg) | ||||||
| SY41C | SY41S | ||||||||||||
| PN1.0 | PN2.5 | PN4.0 | PN1.0 | PN2.5 | PN4.0 | ||||||||
| SY41C-10 SY41C-16 SY41C-25 SY41C-40 SY41S-10 SY41S-16 SY41S-25 SY41S-40 |
15 | 110 | 87 | 120 | ZG3/8" | 0.00185 | 2.62 | 2.74 | 2.81 | 2.80 | 2.85 | 2.85 | |
| 20 | 130 | 105 | 148 | ZG1/2" | 0.00281 | 3.00 | 3.06 | 3.06 | 3.05 | 3.11 | 3.11 | ||
| 25 | 150 | 114 | 176 | ZG1/2" | 0.00343 | 3.70 | 3.78 | 3.98 | 3.80 | 3.84 | 3.84 | ||
| 32 | 160 | 124 | 193 | ZG1/2" | 0.00486 | 5.35 | 5.46 | 5.46 | 5.43 | 5.54 | 5.54 | ||
| 40 | 200 | 156 | 237 | ZG1/2" | 0.00767 | 6.54 | 6.60 | 7.01 | 6.62 | 6.72 | 6.72 | ||
| 50 | 220 | 181 | 270 | ZG1/2" | 0.01160 | 9.21 | 9.46 | 9.97 | 10.9 | 11.1 | 11.1 | ||
| 65 | 290 | 250 | 369 | ZG3/4" | 0.02111 | 20.2 | 21.6 | 22.7 | 22.4 | 23.9 | 24.1 | ||
| 80 | 310 | 280 | 429 | ZG3/4" | 0.03029 | 23.4 | 25.1 | 27.4 | 26.6 | 27.7 | 28.5 | ||
| 100 | 350 | 320 | 488 | ZG3/4" | 0.04033 | 31.2 | 34.2 | 38.3 | 34.6 | 37.1 | 38.8 | ||
| 125 | 400 | 374 | 547 | ZG3/4" | 0.05589 | 44.1 | 49.1 | 56.9 | 50.5 | 54.6 | 57.8 | ||
| 150 | 480 | 430 | 622 | ZG3/4" | 0.07709 | 54.5 | 61.3 | 72.0 | 63.9 | 70.7 | 74.2 | ||
| 200 | 550 | 515 | 741 | ZG3/4" | 0.11967 | 81.0 | 93.3 | 127.7 | 85.3 | 97.0 | 120.5 | ||
